The SM/SK series is ideally suited to detect the position of control cabinet doors. A control query can be carried out or control cabinet lighting can be switched.

• Different actuators
• Metal actuator or plastic actuator
• 1 or 2 microswitches
• Silver or gold plated contacts
• Positive opening acc. to IEC/EN 60947-5-1 possible
• Cable outlet lateral or below alternatively screw terminal possible
• Cable assembly possible

Carrying bar for the foot switches of the FL/FS series

• Moving the foot switch without bending down
• Bar: stainless steel 1.4301 / ball: duroplast
• Can be mounted to existing ASA foot switches
• Handle heigth: 620mm (24,4 in)

Magnetic switches in square and round design for small applications

• Square design in different sizes
  • (23x13,9x5,9)mm
  • (28,5x19x6,3)mm
• Round design in different sizes
  • (Ø3,8x12,7) (Ø3,8x18) (Ø3,8x25,2)mm
  • (Ø5,6x25,7) mm
  • (Ø6x25,7) (Ø6x40,1) mm
• Following variants are available:
  • Normally open
  • Change over
  • Normally closed (on request)
• Special solutions on request
  • Wirelength
  • Connector
  • Housing color
  • Wire outlet on opposite side

The FL / FS series foot switches are now also available with carrying handle.

• Moving the foot switch without bending down
• Aluminium handle and baseplate
• Can be mounted to existing ASA foot switches
• Handle high: 650mm (25,59 in)

The FL / FS series foot switches are now also available with linear analog output.

• The modules can be installed in our one, two and three pedal switches.
• Can be combined with other switch modules
• Following variants are available:
  • 0 - 10 V
  • 0 - 20 mA
  • 4 - 20 mA
• Additional teachable signal output(PNP, normally open)
• Cable assembly possible


Due to numerous impulses from customers we developed our FM2 Foot Guard. For many applications a foot guard made of die-cast aluminium is too heavy, too large – in short: not suitable. Nevertheless, a large number of applications require a protection option for a foot switch.

This is where our new protective hood comes in and convinces with its compact dimensions and low weight. Robustness combined with maximum functionality. Powder-coated according to RAL, printed with logos and symbols – exactly according to your needs. As sheet steel construction, highly economically advantageous. Perfectly designed for your application.

Contact our sales team - we will be happy to support you.

Foot switches for control center communication | FK series

• Tread made of stainless steel 1.4301
• Non-slip footing
• Standard length 1m (3,28 ft.) and 550mm (1,8 ft.)
  Further lengths on request
• USB Output possible
  (USB can play keyboard commands)


From standard switching device to custom-made product:

ASA foot switches are used in industry as well as in the medical sector. With great success wherever hands must remain free and operations are manually triggered with the foot.

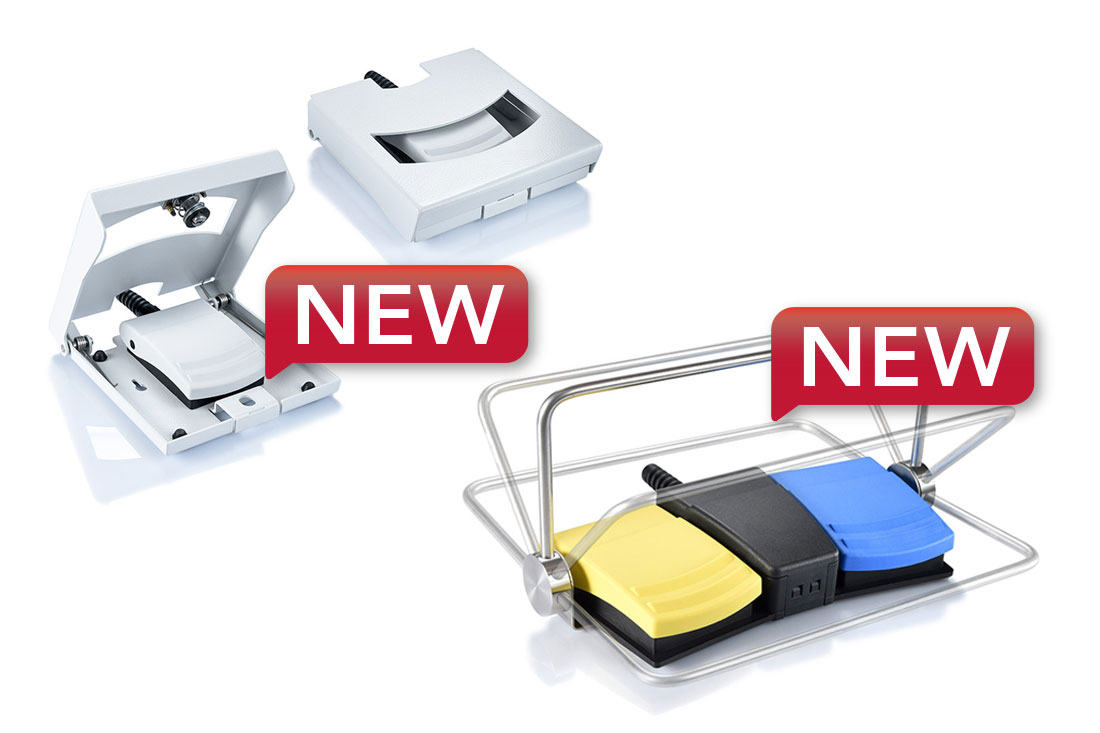

In oder to optimize our customers’ processes we have set ourselves the goal of developing a transport solution for the 2-pedal foot switch. Therefore, we created a transport bracket with a 5-stage detent. Our switch can now be flexibly controlled at any time - it can be easily taken along or moved by means of a bracket.

The stainless steel construction has smooth surfaces, hygienically easy to clean. The design is reduced to the essentials. Convince yourself of the quality and functionality - perfectly adapted to your application.

Please talk to our sales team - we will be happy to advise you and offer the optimum solution.


From standard switching device to custom-made product:

ASA foot switches are used in industry as well as in the medical sector. With great success wherever hands must remain free and operations are manually triggered with the foot.

In order to optimize our customers’ processes we have set ourselves the goal of developing a latching safety guard for our foot switches of FM-series. Especially in laser surgery, but also in other areas of foot-controlled devices, unintentional operation of the foot switch must be avoided. When the guard is closed operation is almost impossible. To start the working process, the guard can be opened by a light step and the footswitch is ready for operation. It can then be closed again with a foot. Designed for minimum dimensions, perfect for transport on mobile units.

The powder-coated sheet steel construction has smooth surfaces, hygienically easy to clean. With handle cut out and non-slip elastic feet trimmed for maximum functionality and safety - perfectly adapted to your application.

Please talk to our sales team - we will be happy to advise you and offer the optimum solution.

In many areas, besides electrical procedures, pneumatic procedures have to be controlled directly. To work as you are used to, we have broadened our product range by a pneumatic foot switch. The installed valve controls with usual quality and highest degree of precision. The interior plug connections and included cable glands guarantee convenient handling – Promise!

We gladly advise and offer you a customized solution for your pneumatic application!


Have you ever actuated your foot switch accidentally?

So that this would not happen again we have the answer: We now offer (besides our established anti-trip mechanism) a hinged pedal cover made of stainless steel. Our safety option for your foot switches. Before actuating the pedal, the cover has to be lifted with the forward section of your foot. After actuating the pedal and leaving active pedal zone, the protection drops down to initial position – your pedal is protected again.

By popular request, we have added this stainless steel switch type in our level switch program. The contactless Reed technique achives long life and is extremly reliable. With minimal dimensions and good resistance a wide range of applications and use cases opens.

Design:

• Stainless steel 1.4571
• NO / NC or change over

Special features:

• The switching function can be changed from NO to NC by turning the float

Application areas:

• Level monitoring on the smalest space

Contact our experts today for a detailed product presentation either at our headquarters or visit us.

We are looking forward to seeing you.

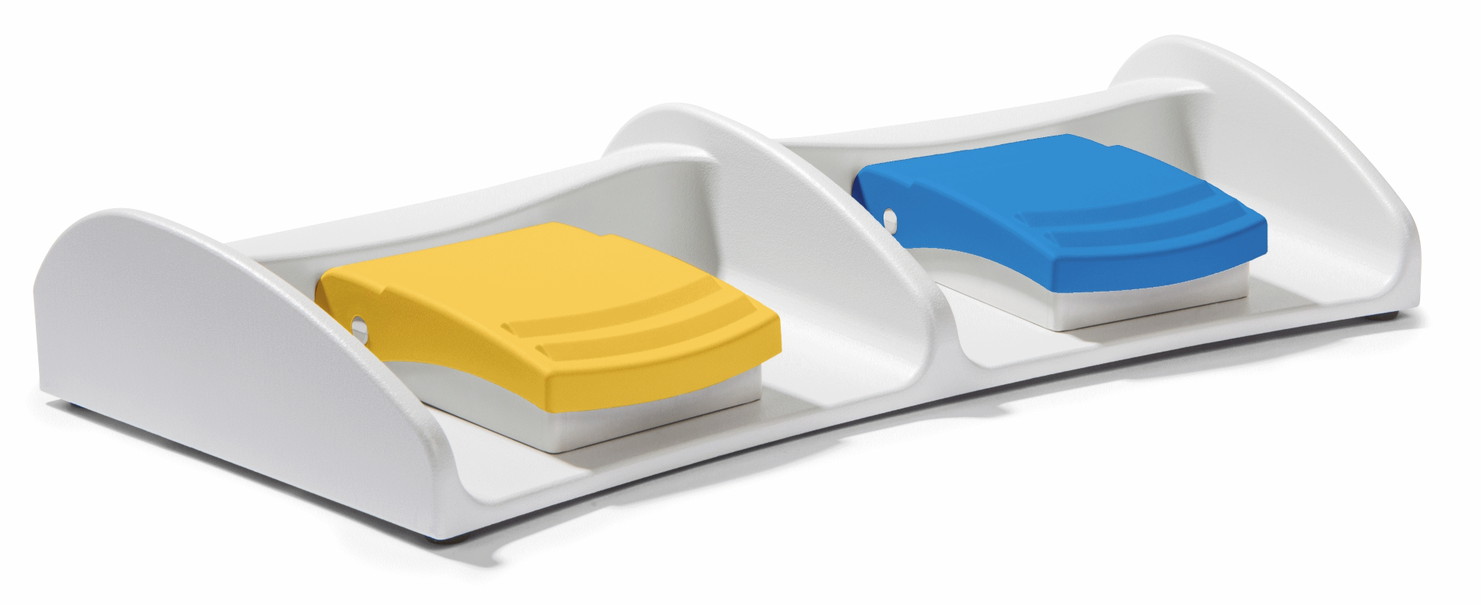

After many technical adjustments and a long wait, the long-awited Food Switch Consoles are finaly available for supply. Due to the highly flexible structure of this series are precisely tailored to a variety of applications of our demanding costumers in the medical industry. Of course, the consoles from UL and TÜV Nord-Approbation. Satisfy yourself of the high quality, Economic design and attractive price structure!

Design:

• Available in 1, 2 and 3 pedal designs
• Robust and slip resistant
• Only high quality materials, such as Aluminum cast alloy and reinforced polyamide plastic, are used
• These colors are available on short notice: black; red; yellow; blue; light gray; jade green; fir green. Other colors on request.

Special features:

• ANSI/AAMI ES60601.
• CAN/CSA-C22.2 No. 60601-1
• Custom colors and markings are available

Application areas:

• Control of medical equipment, and a lot more…

Contact our experts today for a detailed product presentation either at our headquarters or visit us.

We are looking forward to seeing you.

With the new USB interface it is now possible to directly connect ASA foot switches to a PC or an Apple computer. Any possible shortcut that normally would be used with a keyboard can now be triggered by foot. That way your hands stay free:
You can easily forward or backward your PowerPoint presentation, without having to use a presenter. That way your presentation is a lot smoother and more professional.
Doctors can use the USB foot switch with their medical devices. Ultrasound images, for example, can be frozen on screen or a snapshot can be saved on a hard drive, while the treatment itself is not interrupted.
ASA foot switches with an USB interface can greatly improve your professional work: If you are a sound or video editor, you can play, pause or forward your media with your foot and therefore can become a lot more efficient.
There are numerous ways to use the new USB interface foot switch, but they all have one thing in common: the ergonomics of your workplace and your efficiency will be significantly improved.

The new ASA USB foot switch can be an additional or the only input device for your application.
With our supplied software, shortcuts can easily be programmed (Win/Unix/OSX specific as well) and due to an internal memory, it only needs to be done once. As soon as the shortcut is saved to the USB foot switch, it can be used on any computer (Windows, Apple, Linux) without having to install the software or a driver.
However, the very first programming has to be done on a Windows computer. We are happy to program the USB foot switch for your specific needs prior to delivery. That way you only need to plug it in and start working…

Design:

• 1- or 2-pedal
• 3-pedal USB foot switches will be programmed with your desired configuration prior to delivery. Currently it is not possible to program the 3-pedal USB foot switch yourself.
• These colors are available on short notice: black; red; yellow; blue; light gray. Other colors on request.

Special features:

• Plug & Play, no drivers needed.
• Easily programmable shortcuts (Win/Unix/OSX specific as well). The signal will either be trigged by pressing and/or depressing the foot switch.
• The shortcut(s) will be saved on an internal memory, that way the foot switch is ready for use at any computer, without having to install a driver or software.
• A maximum of 8 USB foot switches can be connected to a single computer.

Application areas:

• Scanning, controlling of medical devices, security systems, presentations, editing and a lot more…

Contact our experts today or visit us for a detailed product presentation either at our headquarters or at the SPS 2014 in Nürnberg.

We are looking forward to seeing you.
